Welcome to FABook!

FABook is a dependable assistant for financial advisers by reminding them of meetings and consolidating crucial information like financial plans and client information right at their fingertips!

Financial advisers now focus on giving their full attention to their clients without having to worry about things slipping their mind.

FABook is optimized for a one-stop storage solution to store and remind them on everything they need to know about their client.

What is this guide for?

This developer guide is intended for readers to understand the inner workings of how FABook works and the design process behind different implementations of features. This guide will go into detail about the architecture used to build FABook as well as several notable features.

Who is this guide for?

The intended target audience of this guide is for

  • Developers looking to morph or evolve FABook for different or improved uses
  • Developers looking to understand the architecture and follow the design to build the system
  • Maintainers who are looking to understand how the system was built in order to be able to perform any enhancement or reengineering work.

How to use this guide?

To fully utilise and understand this guide, you should have knowledge and expertise in the following:

  • Java
  • UML diagrams

Organization

The guide provides a top-down view of the system by first providing an overview of the entire system before looking in greater detail of each component of the architecture. Afterwards, it talks about notable implementations within the components. Details mentioned may include:

  • Implementation
  • Example Usage
  • Design
  • Design Considerations
  • Related Features

You may refer to the table of contents below to quick jump to any particular section.

Legend

  • Text in blue are hyperlinks that direct you to the relevant section of the page or to other websites
  • Text in bold are used to emphasize important details to look out for or to distinguish headers from the rest of the text
  • Text in code snippets such as this are used to show program or code related or used in FABook
:bulb: Tips
:information_source: Notes

Table of Contents

Acknowledgements

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

:bulb: Tip: The .puml files used to create diagrams in this document can be found in the diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

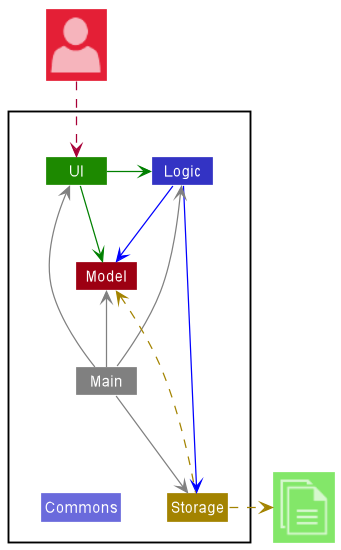

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

  • At app launch: Initializes the components in the correct sequence, and connects them up with each other.
  • At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

  • UI: The UI of the App.
  • Logic: The command executor.
  • Model: Holds the data of the App in memory.
  • Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

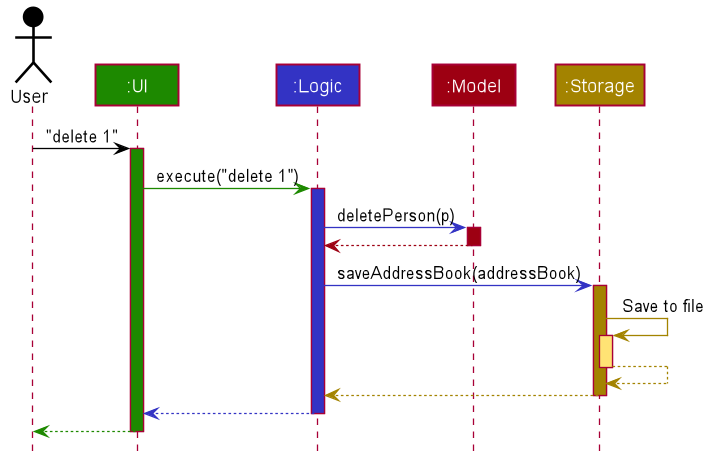

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

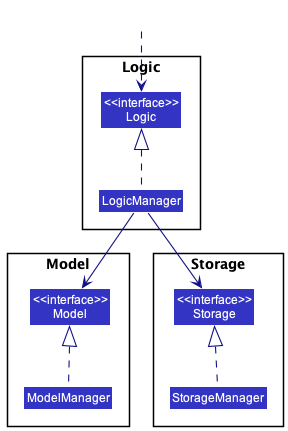

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the Component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

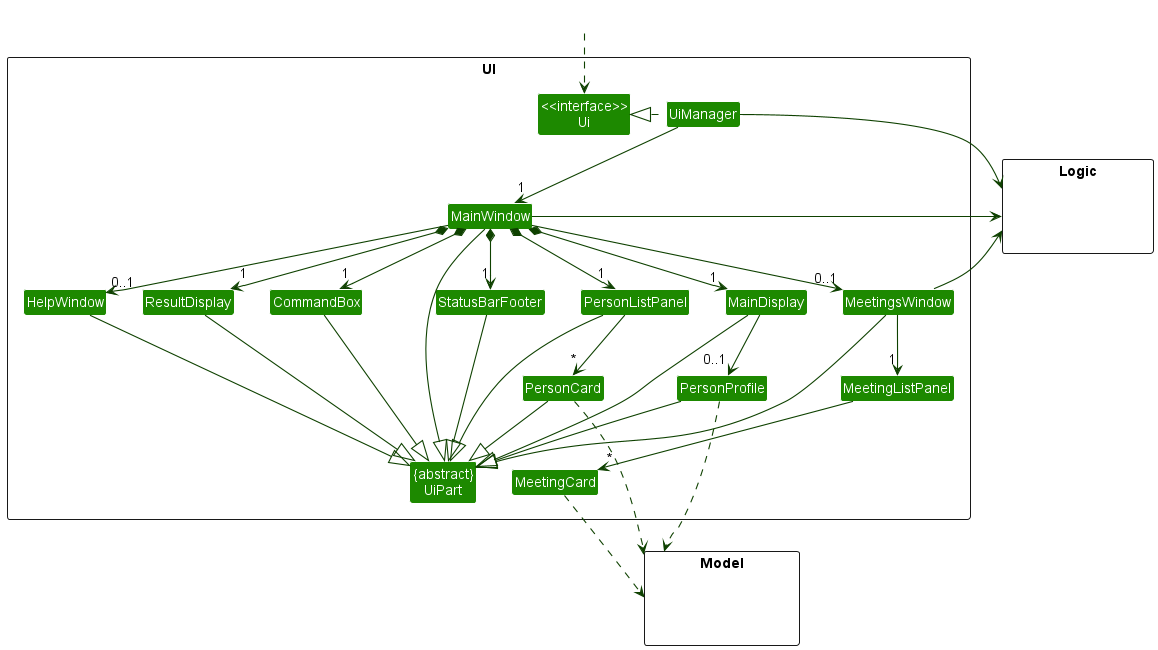

Structure of the UI Component

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the Logic component.
  • listens for changes to Model data so that the UI can be updated with the modified data.
  • keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
  • depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

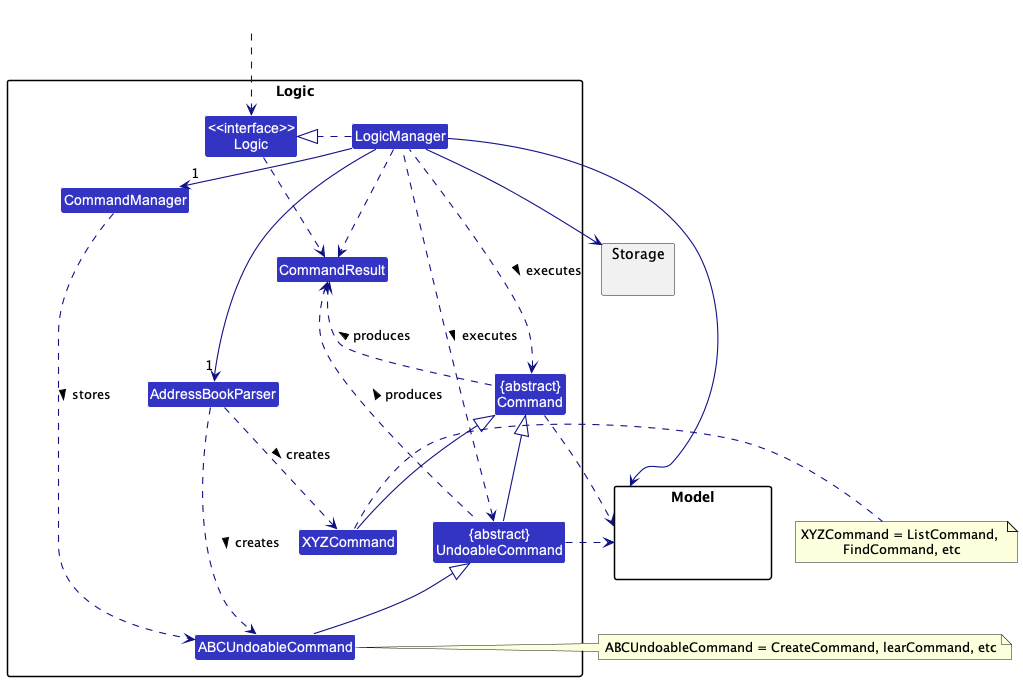

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

  1. When Logic is called upon to execute a command, it uses the AddressBookParser class to parse the user command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., CreateCommand) which is executed by the LogicManager.
    1. UndoableCommand is another interface that extends from the Command interface which represents commands that have undo/redo logic.
    2. Commands that implements UndoableCommand are managed in the CommandManager.
  3. The command can communicate with the Model when it is executed (e.g. to add a person).
  4. The result of the command execution is encapsulated as a CommandResult object which is returned from Logic.

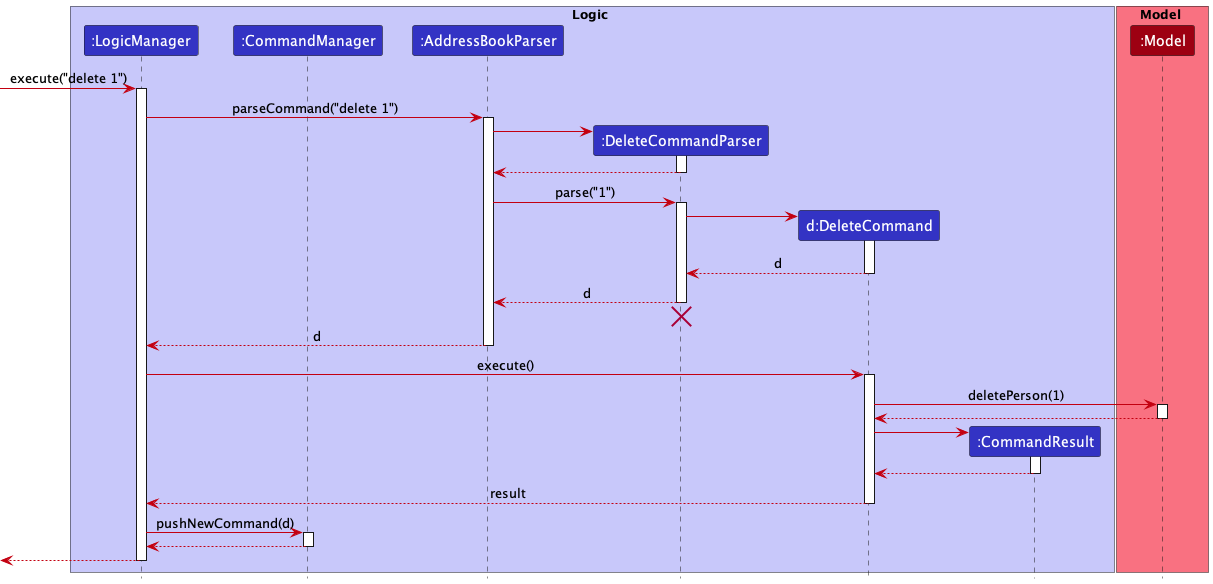

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delete 1") API call.

Interactions Inside the Logic Component for the `delete 1` Command (an undoable command)

:information_source: Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

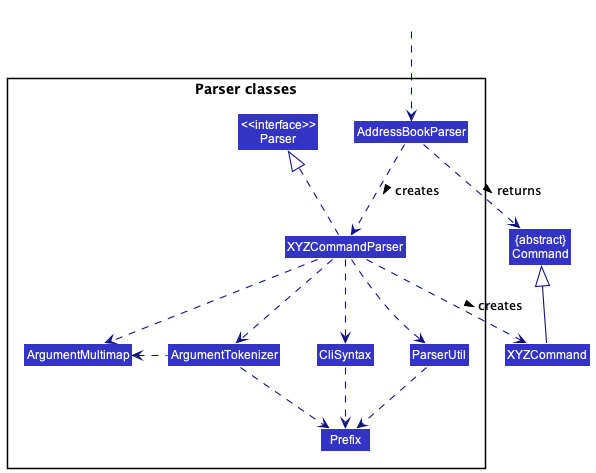

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command: f

How the parsing works:

  • When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., CreateCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., CreateCommand) which the AddressBookParser returns back as a Command object.
  • All XYZCommandParser classes (e.g., CreateCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

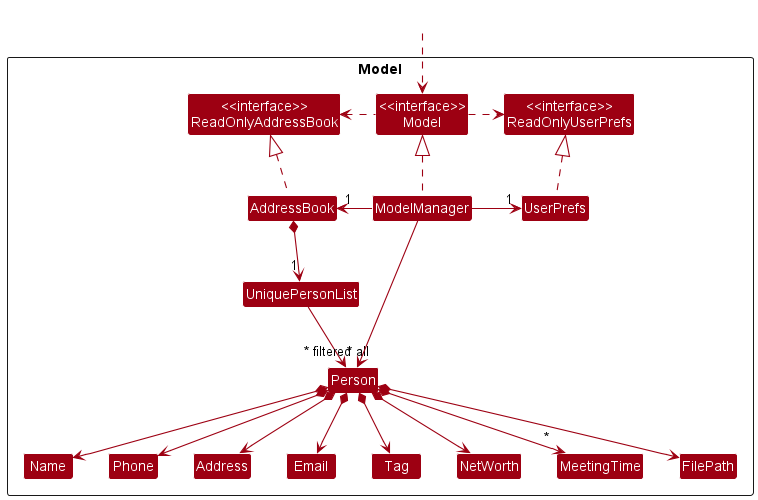

The Model component,

  • stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
  • stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Person Enhancements

Enhancement 1 : Net Worth

The person model now contains a Net Worth field. Net Worth is implemented as a class where it contains a final string value, final static string MESSAGE_CONSTRAINTS and final static string VALIDATION_REGEX.

  • Net Worth accepts a string that has an immutable value.
  • Net Worth is a non-compulsory field. A user will only engage with a client if they know their net worth.
  • Net Worth VALIDATION_REGEX ensures that only Net Worth inputs that begins with a $ sign and has more than 4 digits are accepted.

Design Considerations

  • Choice 1 (current choice) : Compulsory Net Worth field in person and VALIDATION_REGEX calculated in dollars and must be more than 4 digits.
    • Pros: Standardisation of currency and minimum net worth.
    • Cons: Unable to create a contact without knowing the client’s net worth and net worth must be more than a minimum amount.
  • Choice 2 : Non-compulsory Net Worth field and VALIDATION_REGEX has no currency constraints nor minimum amount.
    • Pros: Flexibility in creating a contact.
    • Cons: No means of comparison between a contact of different currency.
Enhancement 2 : Tag

The person model now contains a Tag field. Tag is implemented as a class where it contains a final string value, final static string MESSAGE_CONSTRAINTS and final static string VALIDATION_REGEX.

  • Tag field’s VALIDATION_REGEX ensures that only Tag values of SECURED or POTENTIAL are accepted.
  • Tag is implemented as a Set which means a Person object can have more than one tag.

Improvements

  • Due to limitations we were not able to set an ideal 1 tag constraint to the tag field since the logic behind the 2 tags are mutually exclusive.
  • A check should be made to ensure that a person only has one tag to prevent one client from having both mutually exclusive tags.
Enhancement 3 : FilePath

Find out more information at FilePath.

Enhancement 4 : MeetingTimes

Find more information at MeetingTimes.

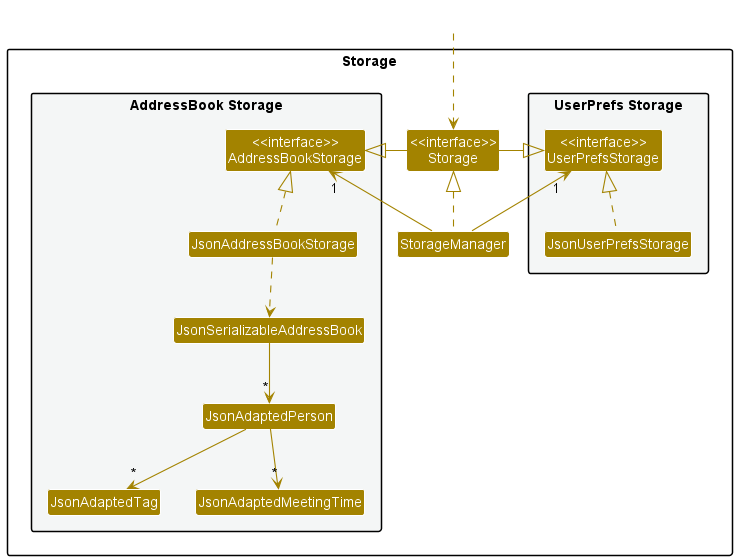

Storage component

API : Storage.java

The Storage component,

  • can save both address book data and user preference data in json format, and read them back into corresponding objects.
  • inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.addressbook.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Opening of Person specific PDF files

Implementation of the opening PDF file of client feature is built on top of the way that the PDF filepath is stored.

Implementation

The mechanism is facilitated by SetPersonFileCommand and FileUtil.

SetPersonFileCommand extends from Command. It overwrites the Command#execute() method to determine if the given filepath is valid and create an “EditedPerson” Person object.

The FileUtil#checkValidPdfFilePath() method is used in SetPersonFileCommand to check the validity of the file path. The method follows the given filePath to check if the file exists and if the given filepath is of type .pdf.

Given below is an example usage scenario and how the set file mechanism behaves at each step.

Step 1. The user launches the application for the first time.

Step 2. The user decides to add a file path to the 2nd person in the current list of contacts in the address book using the filepath 2 f/C:\Users\Eugene Tay\Downloads\Tutorial_8_qns.pdf command.

Step 3. LogicManager calls LogicManager#execute() method that was implemented from Logic interface. Within the method, AddressBookParser#parseCommand() is called on the user input filePath and a Command object is returned.

Step 4. AddressBookParser::parseCommand will parse the user input and match the COMMAND_WORD to be filepath which is SetPathFileCommand#COMMAND_WORD SetPathFileCommandParser object is instantiated which parses and checks the user arguments.

Step 5. SetPathFileCommandParser object parses the given user arguments. If the PREFIX_FILEPATH is present and there is no IllegalValueException, a SetPersonFileCommand object is instantiated with index and filePath obtained from the user arguments.

Step 6. SetPathFileCommand#execute() method is called in LogicManager. This method will check if the given PDF filepath is valid with FileUtil#checkValidPdfFilePath() method.

Step 7. SetPathFileCommand#execute() method will instantiate a new Person object with the original Person object’s attributes and the new filePath. This Person object be set in Model and updated in filterPersonList.

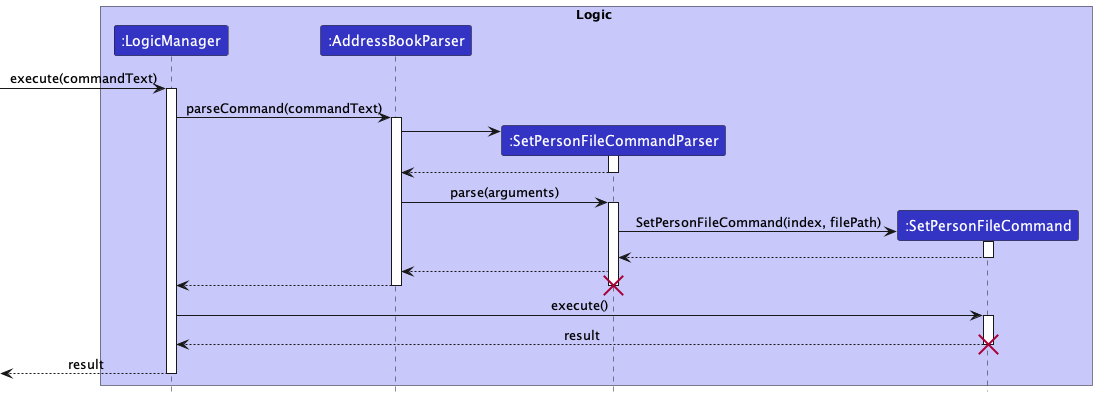

The following sequence diagram shows how the assigning filepath to a client works up till the setPersonFileCommand. SetPersonFileSequenceDiagram

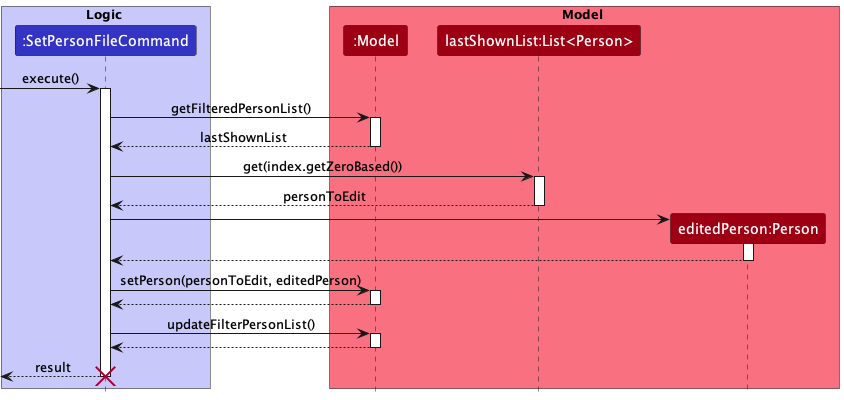

The next sequence diagram shows how setPersonFileCommand works. SetPersonFileSequenceDiagram

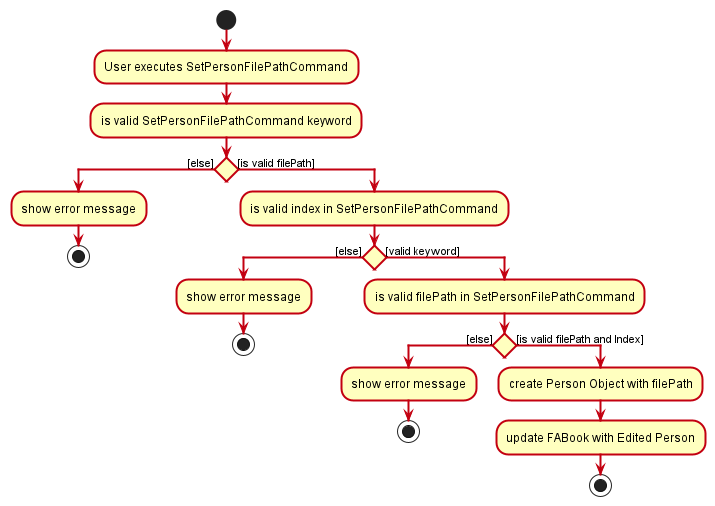

The following activity diagram shows how the assigning filepath to a client feature works. SetPersonFileActivityDiagram

Design Considerations:

Choice 1 (Current Choice) : Store PDF’s absolute path.

  • Pros:
    • Absolute path of the PDF would mean that changes to the file location of User’s FABook will not affect the ability to open PDF.
  • Cons:
    • Changing file location of PDF will render stored filepath useless.

Choice 2 : Store PDF files of clients in a folder.

  • Pros:
    • Users do not need to input absolute path as it is more technical than relative paths.
  • Cons:
    • Changes to the file location of User’s FABook will mean that the PDF cannot be opened anymore since it is relative to the filepath of FABook.

Meeting Feature

MeetingTime is used to model a meeting with a client.

Implementation

MeetingTime stores meetings primarily as a value, displayValue and date.

  • value of type String: Used to for storing MeetingTime as a Json Object
  • displayValue of type String: Used for displaying MeetingTime on MeetingCard, PersonCard and PersonProfile
  • date of type java.time.LocalDateTime: Used for sorting MeetingTimes for MeetingsWindow and SyncCommand

Design Considerations

Aspect: MeetingTime Object

  • Choice 1 (current choice): Person object contains its own set of MeetingTime
    • Pros: Easier to implement given the short amount of time
    • Cons: Harder to sort/filter/manipulate
  • Choice 2 (ideal choice): Bidirectional navigation between MeetingTime and Person
    • Pros: Better abstraction therefore easier to perform MeetingTime specific tasks(e.g. sort, filter)
    • Cons: More complicated to implement

Sync Meetings feature

Implementation

The Sync Meetings feature is facilitated by the following operation:

  • Person#syncMeetingTimes() — Iterates through all MeetingTimes a Person has and removes those that have passed.

This operation is exposed in the Model interface as Model#syncMeetingTimes()

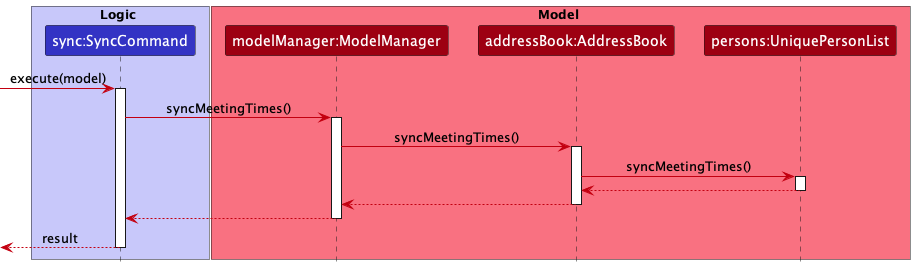

Example Usage:

Step 1. User executes sync. Model#syncMeetingTimes() is called by SyncCommand#execute(Model).

Step 2. Model#syncMeetingTimes() calls AddressBook which calls UniquePersonList#syncMeetingTimes().

Step 3. UniquePersonList#syncMeetingTimes() calls Person#syncMeetingTimes() for each person in UniquePersonList#internalList

Step 4. In Person#syncMeetingTimes(), the predicate MeetingTimePastPredicate() is passed into MeetingTimes#removeIf(Predicate) which removes meetings that are before the time of execution.

Design

Design Considerations

Aspect: Sync Meeting

  • Choice 1 (current choice): In place filter of uniquePersonList
    • Pros: Simple to implement
    • Cons: Hard to introduce undo logic
  • Choice 2: New instance of uniquePersonList when syncing
    • Pros: Easy to introduce undo logic
    • Cons: Breaks singularity of address book in model or uniquePersonList in address book

Upcoming Meetings feature

Implementation

The mechanism is facilitated by MeetingsWindow, MeetingListPanel and MeetingCard.

MeetingsWindow extends UIPart<Stage> and is linked to an FXML Menu Item meetingsMenuItem in MainWindow. This means that MeetingsWindow can be accessed from the menu bar as a menu item from the GUI as well.

The construction of MainWindow object, instantiates a MeetingsWindow object and MainWindow#setAccelerator() method is called.

The MainWindow#setAccelerator() method sets a shortcut that establishes a shortcut f2 to the calling of MainWindow#handleMeetings() method.

MainWindow#handleMeetings() method calls MeetingsWindow#getMeetings() method that filters a list with MeetingsWindow#isWithinOneWeek() method returning an ObservableList<Person> of Person objects who have meetings from now till 7 days later.

The ObservableList<Person> is used to instantiate MeetingCard objects and populate the MeetingListPanel. The classes work in conjunction with the .FXML files to display the MeetingCard on a MeetingListPanel in a MeetingsWindow.

Example Usage

Step 1. User presses f2 to see upcoming meetings.

Step 2. f2 is set by MainWindow#setAccelerator() to call MainWindow#handleMeetings() method which in turn calls MeetingsWindow#getMeetings().

Step 3. MeetingsWindow#getMeetings() method filters a list of Person objects by calling MeetingsWindow#isWithinOneWeek() method on the Set<MeetingTime> of each Person. The filtered list will contain Person objects that have meetings from now till 7 days later.

Step 4. MeetingsWindow#getMeetings() instantiates a MeetingsListPanel object where MeetingsListPanel#updateItem() method creates a MeetingCard for each Person in the list and the MeetingsListPanel is populated with MeetingCard objects on the MeetingsWindow.

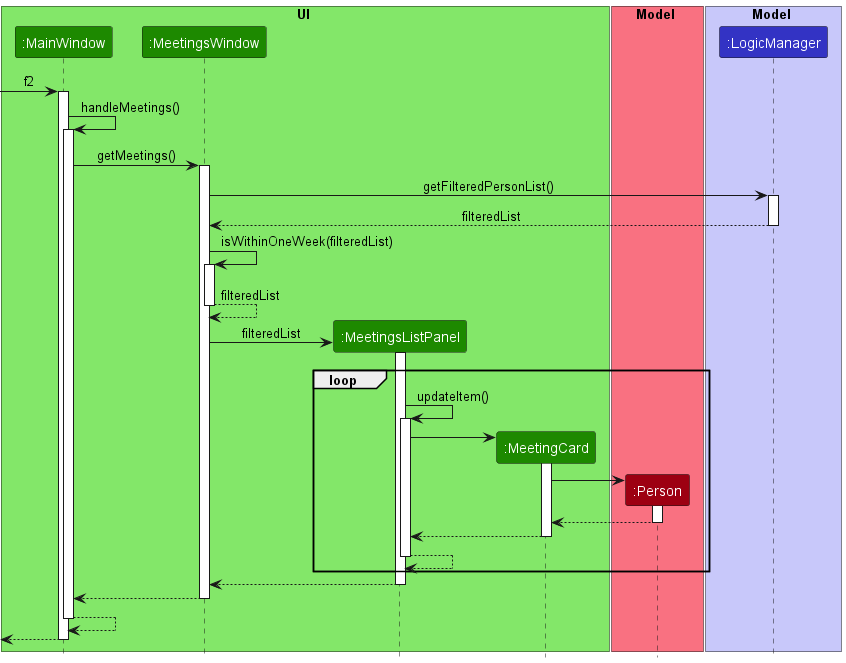

The following sequence diagram shows how upcoming meetings feature works. UpcomingMeetingSequenceDiagram

The following activity diagram shows how upcoming meetings feature works. UpcomingMeetingActivityDiagram

Design Considerations:

Display Choice 1 (Current Choice) : Pop up Meetings window.

  • Pros:
    • Clear segregation from Main UI.
    • Does not take up real estate on the Main UI.
  • Cons:
    • Extra window to be created and managed.

Choice 2 : Displayed on a section of Main Window.

  • Pros:
    • No extra window to be managed.
  • Cons:
    • Cluttered UI.

Meeting Card Display Choice 1 (Current Choice) : Display Meetings Card by Person.

  • Pros:
    • Clear distinction by client of the meetings that user will have with.
  • Cons:
    • Not intuitive for consolidated meetings in a day.

Choice 2 : Display Meetings Card by date.

  • Pros:
    • Intuitive consolidated meetings per day.
  • Cons:
    • Overhaul of new classes and object where a MeetingTime has-a Person rather than the current implementation of a Person has-a MeetingTime.

Undo/redo feature

Implementation

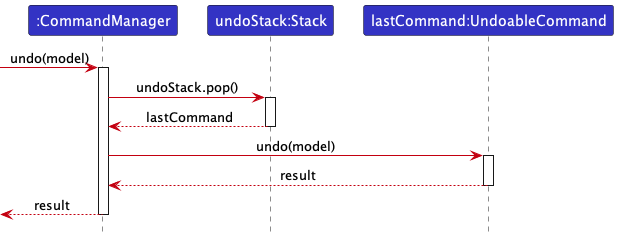

The undo/redo mechanism is facilitated by UndoableCommands and CommandManager.

UndoableCommand extends from Command and implements its own undo and redo methods. Commands that implement UndoableCommand include:

  • CreateCommand — Deletes and adds saved person object for undo and redo methods respectively.
  • DeleteCommand — Adds and deletes saved person object for undo and redo methods respectively.
  • UpdateCommand — Saves the original and edited person objects and sets them accordingly for undo and redo methods.
  • ClearCommand — Restores the saved original address book and sets address book to new address book for undo and redo methods respectively.

CommandManager stores UndoableCommands that have been executed and that have been undone in an undoStack and redoStack respectively. Additionally, CommandManager implements the following operations:

  • CommandManager#pushNewCommand(Command) — Saves the latest undoable command that was executed by user in its history.
  • CommandManager#undo(UndoableCommand) — Undoes the last undoable command from the top of the undo-stack.
  • CommandManager#redo(UndoableCommand) — Redoes the last undoable command from the top of the redo-stack.

These operations are exposed in the Logic interface as Logic#execute(), Logic#undo() and Logic#redo() respectively.

Example Usage

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

Step 1. The user launches the application for the first time. The CommandManger will be initialized with an empty undoStack and redoStack.

Step 2. The user executes delete 5 command to delete the 5th person in the address book. CommandManager#pushNewCommand() is called by Logic#execute(), saving the DeleteCommand in the undoStack.

Step 3. The user executes add n/David …​ to add a new person. CommandManager#pushNewCommand() is called by Logic#execute(), saving the AddCommand in the undoStack.

:information_source: Note: If a command fails its execution, it will not call CommandManager#pushNewCommand(), so the invalid command will not be saved into the undoStack.

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Logic#undo() which calls CommandManager#undo() , which will pop the latest UndoableCommand from the undoStack and calls the #UndoableCommand#undo() method of that command which reverts the addressbook back to its previous state. The command popped is pushed to the redoStack.

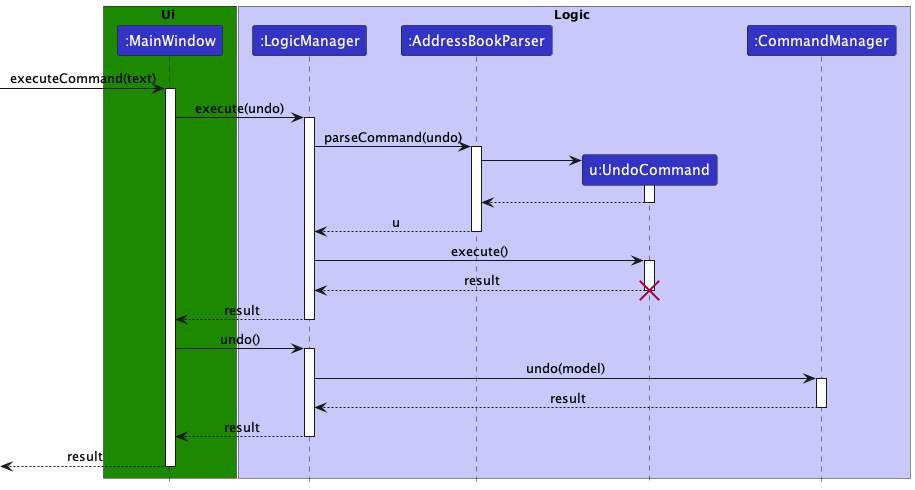

The following sequence diagram shows how the undo command works up till CommandManager:

The next sequence diagram shows how CommandManager executes undo:


The redo command does the opposite — it calls Logic#redo() which calls CommandManager#redo(), which pops the latest UndoableCommand from the redostack and calls the UndoableCommand#redo() of that command which reverts the addressbook to the state after the command execution. The command is added back to the undoStack.

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, will usually not be added to the undoStack by CommandManger#pushNewCommand(). Thus, the undoStack remains unchanged.

Step 6. The user executes clear, which calls CommandManager#pushNewCommand(). Since there redoStack is not empty, CommandManager#pushNewCommand then calls CommandManger#clearRedoStack. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

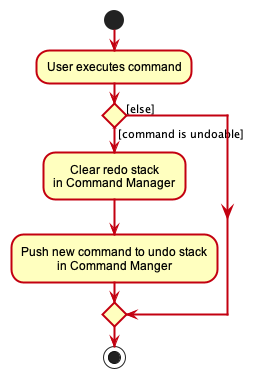

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

  • Choice 1 (current choice) : Individual command knows how to undo/redo by itself.
    • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
    • Cons: We must ensure that the implementation of each individual command are correct.
  • Choice 2 : Saves the entire address book.
    • Pros: Easy to implement.
    • Cons: May have performance issues in terms of memory usage.

Documentation, logging, testing, configuration, dev-ops

Appendix: Requirements

Product scope

Target user profile:

  • has a need to contact and liaise with many clients to sell their products
  • prefer desktop apps over other types
  • can type fast
  • prefers typing to mouse interactions
  • is reasonably comfortable using CLI apps
  • split clients according to potential and secured
  • has many different types of clients (etc. high/low accident rate, injury-prone)
  • has difficulty remembering clients’ information
  • faces trouble in scheduling client meet-ups for both time and location
  • wish to filter based on address

Value proposition:

  • manage clients faster than a typical mouse/GUI driven app
  • categorise client according to status and risk for the user to plan their schedule
  • inbuilt calendar to track meetings
  • search system via location and client meetup suggestions

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​
* * * new user see usage instructions refer to instructions when I forget how to use the App
* * * user add a new client
* * * user delete a client remove entries that I no longer need
* * * user find a client by name locate details of clients without having to go through the entire list
* * * user save written information access previously saved information
* * user find a client by address locate details of clients in a designated area
* * user keep track of planned meetings know when to meet which clients
* * user be reminded of meetings stop missing important meetings
* * tech-savvy user input shortcut commands be more efficient using the app
* * user update a client’s information make changes whenever clients’ information update
* * user afraid of making mistakes quickly revert my actions walk back on decisions or correct errors
* user with many persons in the client book sort clients by name locate a client easily

{More to be added}

Use cases

(For all use cases below, the System is the FABook and the Actor is the user, unless specified otherwise)

Use case: UC01 - Requesting for help

Main Success Scenario (MSS)

  1. User requests for help.
  2. FABook shows an external link for help.
  3. User refers to link for help.

Use case ends.

Use case: UC02 - Listing all clients

Main Success Scenario (MSS)

  1. User requests to list clients.
  2. FABook shows a list of clients.

Use case ends.

Extensions

  • 2a. The list is empty.

    Use case ends.

Use case: UC03 - Creating a client contact

Main Success Scenario (MSS)

  1. User requests to create a client contact.
  2. FABook adds the client contact to its contents.
  3. FABook informs user that input client contact has been successfully added.

Use case ends.

Extensions

  • 1a. Format of creation is invalid.
    • 1a1. FABook shows an error message with suggested format of client contact creation.

    Use case ends.

  • 1b. Input information field is in the wrong format.
    • 1b1. FABook shows an error message with suggested format of the input information field.

    Use case ends.

Use case: UC04 - Assigning a PDF file to a client

Main Success Scenario (MSS)

  1. User prepares the file path to the intended PDF file.
  2. User assigns the file to the client.
  3. FABook informs user that file path has been successfully added to the chosen client.

Use case ends.

Extensions

  • 1a. Format of file assignment is invalid.
    • 1a1. FABook shows an error message with suggested format of file assignment.

    Use case ends.

Use case: UC05 - Finding a client by name

Main Success Scenario (MSS)

  1. User requests to find clients by a specific name.
  2. FABook shows a list of matching clients.
  3. FABook informs the user of number of clients found.

Use case ends.

Extensions

  • 1a. No client name was provided.
    • 1a1. FABook shows an empty list.

    Use case ends.

  • 1b. No such client with the specified name is found.
    • 1b1. FABook shows an error message with suggested format of finding by name.

    Use case ends.

Use case: UC06 - Finding a client by phone number

Main Success Scenario (MSS)

  1. User requests to find clients by a specific phone number.
  2. FABook shows a list of matching clients.
  3. FABook informs the user of number of clients found.

Use case ends.

Extensions

  • 1a. No client number was provided.
    • 1a1. FABook shows an error message with suggested format of finding by phone number.

    Use case ends.

  • 1b. No such client with the specified number is found.
    • 1b1. FABook shows an empty list.

    Use case ends.

Use case: UC07 - Finding a client by address

Main Success Scenario (MSS)

  1. User requests to find clients by a specific address.
  2. FABook shows a list of matching clients.
  3. FABook informs the user of number of clients found.

Use case ends.

Extensions

  • 1a. No client address was provided.
    • 1a1. FABook shows an error message with suggested format of finding by address.

    Use case ends.

  • 1b. No such client with the specified address is found.
    • 1b1. FABook shows an empty list.

    Use case ends.

Use case: UC08 - Finding a client by tag

Main Success Scenario (MSS)

  1. User requests to find clients by a specific tag.
  2. FABook shows a list of matching clients.
  3. FABook informs the user of number of clients found.

Use case ends.

Extensions

  • 1a. No tag was provided.
    • 1a1. FABook shows an error message with suggested format of finding by address.

    Use case ends.

  • 1b. No such client with the specified tag is found.
    • 1b1. FABook shows an empty list.

    Use case ends.

Use case: UC09 - Opening the PDF file of a client

Main Success Scenario (MSS)

  1. User requests to open a specific client’s PDF file.
  2. FABook informs the user that the PDF file has been successfully opened.
  3. Client’s PDF file is opened on the user’s operating system according to their default PDF file reader.

Use case ends.

Extensions

  • 1a. No PDF file was assigned to the client beforehand.
    • 1a1. FABook shows an error message that file path of client has not been assigned yet.

    Use case ends.

  • 1b. The given index is invalid.
    • 1b1. FABook shows an error message that the index provided is invalid.

    Use case ends.

  • 1c. FABook detects that the assigned PDF file was moved, edited or deleted.
    • 1c1. FABook shows an error message that the file path has been modified.

    Use case ends.

Use case: UC10 - Checking for upcoming meetings

Main Success Scenario (MSS)

  1. User opens up the upcoming meetings.
  2. FABook shows upcoming meetings in a new window.

Use case ends.

Extensions

  • 1a. There are no upcoming meetings
    • 1a1. FABook shows an empty list in the upcoming meetings window.

    Use case ends.

Use case: UC11 - Updating a client’s information

Preconditions: There are existing clients in FABook’s contents.

Main Success Scenario (MSS)

  1. User requests to update a specific client’s information.
  2. FABook updates the given client’s information.
  3. FABook informs user of updated client’s information.

Use case ends.

Extensions

  • 1a. The given index is invalid.
    • 1a1. FABook shows an error message that the index provided is invalid.

    Use case ends.

  • 1b. No input information field was given.
    • 1b1. FABook shows an error message that an information field must be provided.

    Use case ends.

  • 1c. Input information field is in the wrong format.
    • 1c1. FABook shows an error message with suggested format of the input information field.

    Use case ends.

Use case: UC12 - Updating a client’s description

Preconditions: There are existing clients in FABook’s contents.

Main Success Scenario (MSS)

  1. User requests to update the description of a specific client.
  2. FABook updates the description of the specified client.
  3. FABook informs user that the description has been updated.

Extensions

  • 1a. The given index is invalid.
    • 1a1. FABook shows an error message that the index provided is invalid.

    Use case ends.

Use case: UC13 - Adding new meeting(s) to an existing client

Preconditions: There are existing clients in FABook’s contents.

Main Success Scenario (MSS)

  1. User requests to add new meeting(s) to a specific client.
  2. FABook adds new meeting(s) to the specified client.
  3. FABook informs user that new meeting(s) have been added to the specified client.

Extensions

  • 1a. The given index is invalid.
    • 1a1. FABook shows an error message that the index provided is invalid.

    Use case ends.

  • 1b. Format of meeting time given is invalid.
    • 1b1. FABook shows an error message with suggested format of meeting time.

    Use case ends.

Use case: UC14 - Deleting a client

Main Success Scenario (MSS)

  1. User requests to find a client by specified name(UC05).
  2. User requests to delete a specific client by name in the list.
  3. FABook deletes the client.
  4. FABook informs the user that the specified client has been successfully deleted.

Use case ends.

Extensions

  • 2a. The given index is invalid.
    • 2a1. FABook shows an error message that the index provided is invalid.

    Use case ends.

Use case: UC15 - Deleting meetings from a client

Main Success Scenario (MSS)

  1. User requests to find a client by specified name(UC05).
  2. User requests to delete a specific meeting from the client.
  3. FABook deletes the specified meeting from the client.
  4. FABook informs the user that the specified meeting has been successfully deleted from the client.

Use case ends.

Extensions

  • 2a. The given index is invalid.
    • 2a1. FABook shows an error message that the index provided is invalid.

    Use case ends.

  • 2b. Format of meeting time given is invalid.
    • 2b1. FABook shows an error message with suggested format of meeting time.

    Use case ends.

Use case: UC16 - Removing all past meetings

MSS

  1. User requests to remove all meetings that have past.
  2. FABook deletes all meetings that have past from every client.
  3. FABook informs the user that all past meetings have been successfully deleted.

Use case ends.

Use case: UC17 - Clearing all entries

Main Success Scenario (MSS)

  1. User requests to clear all entries.
  2. FABook deletes all clients and their information.
  3. FABook informs the user that all information has been cleared.

Use case ends.

Use case: UC18 - Undoing a previous command

Main Success Scenario (MSS)

  1. User requests to undo a previous command.
  2. FABook undoes the last undoable action and updates the relevant information changed.
  3. FABook informs the user of the undoable action that has been executed.

Use case ends.

Extensions

  • 1a. No previous commands available.
    • 1a1. FABook shows an error message that there are no commands to undo.

    Use case ends.

  • 1b. The previous command is not undoable.
    • 1b1. FABook shows an error message that there are no commands to undo.

    Use case ends.

Use case: UC19 - Redoing an undo command

Main Success Scenario (MSS)

  1. User requests to undo a previous command(UC18).
  2. User requests to redo the undo command.
  3. FABook redoes the last undo command and updates the relevant information changed.
  4. FABook informs the user of the redone action that has been executed.

Use case ends.

Use case: UC20 - Exiting FABook

Main Success Scenario (MSS)

  1. User requests to exit.
  2. FABook closes.

Use case ends.

{More to be added}

Non-Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 11 or above installed.
  2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
  3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
  4. The system should work on both 32-bit and 64-bit environments.

{More to be added}

Glossary

  • Mainstream OS: Windows, Linux, Unix, OS-X

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

  1. Initial launch

    1. Download the jar file and copy into an empty folder

    2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

  3. { more test cases …​ }

Creating a person

  1. Creating a person with a duplicate already present

    1. Prerequisite: A person with name Alice Tan and phone number 12345678 on the list. Other fields may be present with any value.

    2. Test case: create n/Alice Tan p/12345678
      Expected: No new person created. Error details shown in the command display.

    3. Test case: create n/Alice Tan p/87654321
      Expected: A new person is added to the list. Details of the new person shown in the command display.

    4. Other viable create commands to try: create n/Bob Wang p/12345678, create n/alice tan p/12345678, create n/alice tan p/12345678
      Expected: Success. Similar to previous.

Assigning a PDF file to a person

  1. Assigning a PDF file to a person without PDF file assigned.

    1. Create a PDF file on your computer.

    2. Test case: filepath INDEX f/FILEPATH where FILEPATH is the absolute file path of the PDF file from step 1.
      Expected: PDF file assigned. Client details shown in the command display.

      1. Click on the client in the result display.

      2. Scroll down the contact information window.
        Expected: Client Information button in high-contrast white borders and is clickable.

      3. Click on the Client Information button
        Expected: The PDF file is opened.

    3. Test case: filepath INDEX f/RELATIVE FILEPATH where RELATIVE FILEPATH is the file path of the PDF relative to the directory of FABook. Expected: PDF File is assigned. Client details shown in the command display.

      1. Click on the client in the result display.

      2. Scroll down the contact information window.
        Expected: Client Information button in high-contrast white borders and is clickable.

    4. Other incorrect inputs to try: Incorrect filepaths, filepaths for other file types (e.g. .doc)
      Expected: PDF file not assigned. Error details shown in the command display. See previous.

    5. See Opening PDF file below for more related testing.

  2. Assigning a PDF file to a person already with PDF file assigned.

    1. Assign a PDF file to a person as instructed in the previous tests.

    2. Create a new PDF file on your computer.

    3. Test case: filepath INDEX f/NEWFILEPATH where NEWFILEPATH is the absolute file path of the new PDF file from step 2.
      Expected: PDF file assigned. Client details shown in the command display.

      1. Click on the client in the result display.

      2. Scroll down the contact information window.
        Expected: Client Information button in high-contrast white borders and is clickable.

      3. Click on the Client Information button
        Expected: The new PDF file is opened.

    4. Test case: filepath INDEX f/RELATIVE FILEPATH where RELATIVE FILEPATH is the file path of the PDF relative to the directory of FABook. Expected: PDF file assigned. Client details shown in the command display.

      1. Click on the client in the result display.

      2. Scroll down the contact information window.
        Expected: Client Information button in high-contrast white borders and is clickable.

      3. Click on the Client Information button
        Expected: The new PDF file is opened.

    5. Other incorrect inputs to try: Incorrect filepaths, filepaths for other file types (e.g. .doc)
      Expected: new PDF file not assigned. Error details shown in the command display. See previous.

    6. See Opening PDF file below for more related testing.

Finding a person by name

  1. Finding person by partial names

    1. Use the create command to add to list a person named Jack and another person named Jackson.

    2. Test case: find n/jack
      Expected: Both Jack and Jackson are on the shown list.

    3. Test case: find n/jackson
      Expected: Jackson is on the shown list. Jack is not.

  2. Finding person using multiple names

    1. Use the create command to add to list a person named Amy Lin, a person named Bob Wang, and another person named Carol Chen.

    2. Test case: find n/amy bob
      Expected: Both Amy Lin and Bob Wang are on the shown list. Carol Chen is not shown on the list.

    3. Test case: find n/dave lin
      Expected: Amy Lin is on the shown list. Bob Wang and Carol Chen are not shown on the list.

Finding a person by number

  1. Finding person using multiple numbers

    1. Use the create command to add to list a person named Alice with phone 12345678 and another person named Bob with phone 87654321.

    2. Test case: find p/87654321 12345678
      Expected: Both Alice and Bob are on the shown list.

    3. Test case: find p/12345678 11111111
      Expected: Alice is on the shown list. Bob is not.

  2. Finding multiple persons with the same number

    1. Use the create command to add to list a person named Alice Tan with phone 12345678 and another person named Peter Tan with phone 12345678.

    2. Test case: find p/12345678
      Expected: Both Alice Tan and Peter Tan are on the shown list.

Finding a person by address

  1. Finding person by address with shortcuts

    1. Use the create command to add to list a person named Alice Tan with address 21 Lower Kent Ridge Rd, Singapore.

    2. Test case: f a/Kent Ridge
      Expected: Alice Tan is on the shown list in results display.

Finding persons by tag

  1. Prerequisites: Multiple clients on the list. Some clients have the tag POTENTIAL. Some clients have the tag SECURED.

  2. Finding persons using one tag

    1. Test case: find t/SECURED
      Expected: All clients with the tag SECURED are shown in results display. No other clients are shown.

    2. Test case: find t/secured
      Expected: Success. Same as previous.

    3. Test case: find t/signed
      Expected: No change in results display. Error details shown in the command display.

  3. Finding persons using multiple tags

    1. Test case: find t/SECURED POTENTIAL
      Expected: All clients with the tag POTENTIAL are shown in results display. No other clients are shown.

    2. Test case: find t/potential secured
      Expected: All clients with the tag SECURED are shown in results display. No other clients are shown.

Opening PDF file

  1. Filepath not assigned

    1. Add a new client using create command.

    2. Click on the newly added client.

    3. Scroll down the Contact Information window.
      Expected: A greyed out No Client Information button is visible.

    4. Try to click on the No Client Information button.
      Expected: No file opened. No message shown.

    5. Test case: file INDEX where INDEX is the index of the new client on the list.
      Expected: No file opened. Error details shown in the command display.

  2. Filepath is assigned

    1. Add a new client using create command.

    2. Assign a PDF file to a person - See Assigning a PDF file to a person for examples on how to assign PDFs.

    3. Test case: file INDEX where INDEX is the index of the new client on the list.
      Expected: The PDF file is opened.

    4. Test case; Click on the Client Information button
      Expected: The PDF file is opened.

  3. Dealing with invalid filepaths

    1. Create a PDF file on your computer.

    2. Use filepath command to assign the PDF file to a client in the FABook.

    3. Rename or delete the PDF file on your computer.

    4. Try to open the file from within FABook using file command or Client Information button.
      Expected: No file is opened. Error details shown in the command display or below the Client Information button.

    5. Exit the app.

    6. Re-launch the app.
      Expected: The app re-launches with previously stored data intact.

Get upcoming meetings

  1. Getting upcoming meetings

    1. Add multiple meeting to multiple clients in FABook with meeting times within the next 7 days.

    2. Add multiple meeting to multiple clients in FABook with meeting times before the present time.

    3. Add multiple meeting to multiple clients in FABook with meeting times later than 7 days from the present time.

    4. Press F2 or click on Meetings button then the Upcoming Meetings F2 button that appears.
      Expected: A new window with title Upcoming Meetings appear. Only the meetings added in step 1 are displayed.

  2. Getting upcoming meetings with Upcoming Meetings window open

    1. Perform step 1~4 in Getting upcoming meetings above.

    2. Switch the current window to one different from the Upcoming meetings window without closing the Upcoming meetings window.

    3. Press F2 or click on Meetings button then the Upcoming Meetings F2 button that appears.
      Expected: The Upcoming meetings window re-appears to the front.

  3. Getting upcoming meetings after updating with Upcoming Meetings window open

    1. Perform step 1~4 in Getting upcoming meetings above.

    2. Swtich back to the main FABook window.

    3. Add one meeting to any client with meeting time within the next 7 days.

    4. Close the Upcoming Meetings window.

    5. Press F2 or click on Meetings button then the Upcoming Meetings F2 button that appears.
      Expected: A Upcoming Meetings window appear. The meeting added in step 3 is displayed on the list.

Update client information:

  1. Updating client information though input shortcut:

    1. Test case: u 1 nw/$22000
      Expected: Networth of first client change to $22000. New client detail shown in command display.

Update descriptions:

  1. Adding a description

    1. Test case: description 2 ds/Eager to invest
      Expected: Description of the second client changed to Eager to invest.

    2. Test case: description ds/Eager to invest
      Expected: No change in descriptions made. Error details shown in command display.

    3. Other test cases: description, description 0 ds/Eager to invest
      Expected: No change in descriptions made. Error details shown in command display.

  2. Removing a description

    1. Test case: description 2 ds/
      Expected: Description of the second client removed. “Removed Description: “ message shown in command display.

    2. Other test cases: description, description 0 ds/
      Expected: No change in descriptions made. Error details shown in command display.

Update meetings:

  1. Adding multiple meetings to the same person

    1. Test case: meeting 2 mt/19-10-2022-10:34 mt/23-11-2022-22:22
      Expected: Two meetings are successfully added. Details of the updated person shown in the command display.

      1. Click on the second client on the result display.
        Expected: Two new meeting times are visible with a green background.

    2. Test case: meeting 2 mt/19-10-2022-10:34 23-11-2022-22:22
      Expected: No meetings added. Error details shown in the command display.

    3. Other incorrect inputs: meeting 0 mt/19-10-2022-10:34, meeting 2 mt/31-09-2022-10:34, meeting 2 mt/19-10-2022-10:60

  2. Re-adding the same meeting to the same person

    1. Use meeting 2 mt/19-10-2022-10:34 to add a meeting.

    2. Re-enter meeting 2 mt/19-10-2022-10:34
      Expected: Success message shown in command display.

      1. Click on the second client on the result display.
        Expected: Only one 19 October 2022 10:34. No duplicate meetings.

Deleting a person

  1. Deleting a person while all persons are being shown

    1. Prerequisites: List all persons using the list command. Multiple persons in the list.

    2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the command display.

    3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the command display.

    4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

  2. Deleting a person while a filtered list of persons is being shown

    1. Prerequisites: Find certain persons using the find command. Multiple persons in the list.

    2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the command display.

      1. Use the list command to show all persons. Expected: The same contact is deleted from the main list.

    3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the command display.

    4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Delete Meetings

  1. Deleting assigned meeting

    1. Meeting 2 mt/20-12-2012-20:12 to assign meeting time 20-12-2012-20:12 to the second client.

    2. Test case deletemeeting 2 mt/20-12-2012-20:12
      Expected: Meeting time 20-12-2012-20:12 removed from second client. Results display updated.

    3. Test case deletemeeting 2 mt/11-11-2011-11:11
      Expected: No meeting removed. Error message Couldn't find meeting time and details shown in the command display.

    4. Other incorrected deletemeeting commands to try: deletemeeting 2, deletemeeting 0 mt/20-12-2012-20:12 Expected: No meeting removed. Error details shown in the command display.

Remove past meetings

  1. Remove past meetings

    1. Add multiple meeting to multiple clients in FABook with meeting times after the present time.

    2. Add multiple meeting to multiple clients in FABook with meeting times before the present time.

    3. Enter sync.
      Expected: Meetings added in step 2 are removed. Success message displayed shown in the command display.

Undoing a previous command

  1. Undoing create

    1. Enter create n/Amy p/11111111
      Expected: New person created with Name: Amy and Phone: 11111111.

    2. Enter undo
      Expected: Person removed. Removed person detail shown in the command display.

  2. Undoing clear

    1. Use create command to add multiple clients to FABook.

    2. Use clear command
      Expected: All clients removed from results display list.

    3. Enter undo
      Expected: All clients restored. Success message shown in the command display.

  3. Undoing delete

    1. Prerequisite: At least one client on displayed list.

    2. Use delete command to remove a client.

    3. Enter undo
      Expected: Removed client restored. Success message shown in the command display.

  4. Undoing list (non-undoable)

    1. Prerequisite: No previous commands this session. Re-laund the app if there were previous inputs.

    2. Use list command to view entire list.

    3. Enter undo
      Expected: No changes made to FABook. Error details shown in the command display.

  5. Undoing with non-undoable commands in between

    1. Similar to test 1, use create command to add a client to list.

    2. Use list command to view entire list.

    3. Use help command to view help window.

    4. Enter undo
      Expected: Successfully removed the client created in step 1.

  6. Undoing multiple commands

    1. Prerequisite: Multiple clients on displayed list.

    2. Use delete command to remove a client.

    3. Repeat step 2 five times.

    4. Enter undo
      Expected: Most recently removed client is restored.

    5. Re-enter undo with same number of repetition as step 3
      Expected: All removed clients restored. Clients restored in reverse order of removal.

  7. Undoing redo

    1. Use create command to add a client to list.

    2. Enter undo
      Expected: Recently added client removed.

    3. Enter redo
      Expected: Client re-added.

    4. Enter undo
      Expected: Client re-removed.

    5. Enter redo
      Expected: Client re-added.

    6. Enter undo
      Expected: Client re-removed.

Saving data

  1. Dealing with missing data files

    1. Launch the app and exit after any number of actions.

    2. In the same directory as the app, find folder data.

    3. Delete the data folder along with the file FABook.json inside.

    4. Re-launch the app.
      Expected: The app launches with a auto-generated list of sample data containing six sample clients. The first sample client is Alex Yeoh.

    5. Re-exit the app after any number of actions.
      Expected: The data folder is re-created with the file FABook.json inside.

  2. Dealing with corrupted data files

    1. Launch the app and exit after any number of actions.

    2. In the same directory as the app, find folder data.

    3. Open the file FABook.json inside the data folder.

    4. Edit FABook.json so that it no longer follews the usual saved format. Save the changes made.

    5. Re-launch the app.
      Expected: The app launches with an empty list.

    6. Re-exit the app after any number of actions.
      Expected: The file FABook.json is replaced with new data in correct format.

Appendix: Effort

FABook was built across 13 weeks, with the first 7 weeks being used to understand the foundation it was built upon, AddressBook Level-3, as well as conceptualize, design and plan out the implementation of FABook. The 6 remaining weeks were used to incrementally implement functionalities on a weekly basis.

Difficulty Level

Given that each of us had to work on a similar individual project(iP) before banding together to work on this project, if the difficulty of the individual project is a 5, the difficulty of implementing FABook as an application is a 9. This is due to the following:

  • Given more freedom to explore and create an application based on our team’s ideas, this encouraged us to push for more complex logic designs.
  • Working in a team environment meant that there was a need to discuss and delegate tasks on a regular basis, which led to administrative challenges.

Challenges Faced

  • Evolving any feature that was implemented in AB3 often leads to a chain reaction of changes to make such as the following:
    • We have to ensure that other features of the program have not been broken through updating of automated test cases as well as manual testing.
    • User guide and developer guide have to be updated accordingly to reflect any changes made.
    • Dealing with bugs caused by any change may lead to a deep ‘rabbit-hole’ trying to fix what went wrong.
  • Coordinating with the UI of the program after implementing new features.
  • Dealing with team conflicts over design choices and time delay between different schedules of team members.

Effort required

When compared to the effort needed for everyone’s iP, it can be estimated ~150% of the effort needed for iP was used for this team project. Weekly consistent effort was needed by everyone to handle team deliverables and to ensure that a working product was ready at every milestone and iteration.

Achievements

  • Implementation of the ability to assign and open client’s PDF document.
  • UI redesigned to match a more aesthetically pleasing and purposeful look.
  • Addition of new commands.
  • Implementation of an upcoming meetings window which involved new UI and logic implementation.
